Б/у оборудование

Здесь вы найдете подержанное и выставочное оборудование на специальных условиях!

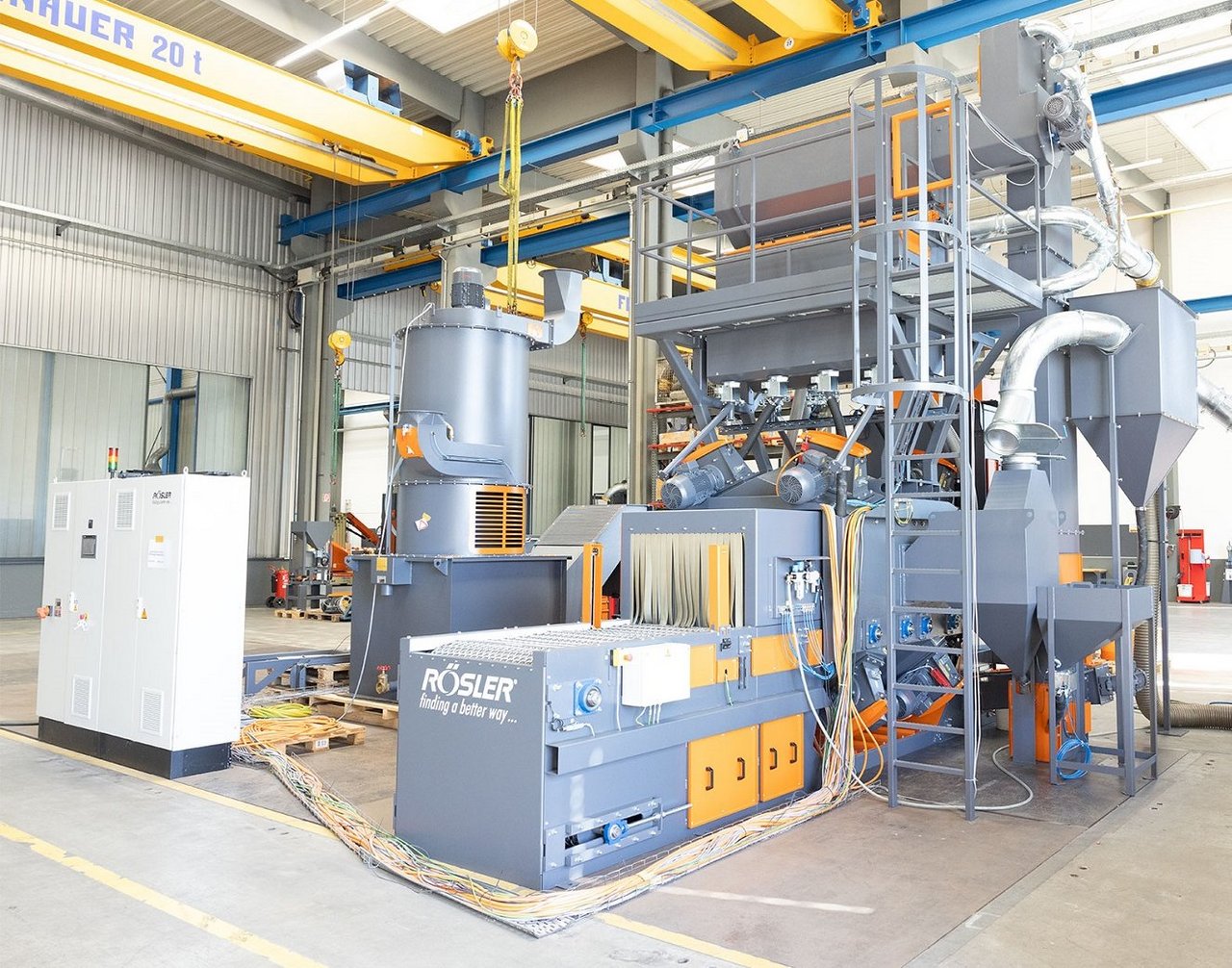

Rösler Wire Mesh Belt Blast Machine (STR9585)RDGE 1000-8

New machine with electrical control unit and filter unit

  •  year of manufacture: 2023
  • turbines: 8 pc. "Gamma 300 G" (11 kW/each)
  • automatic blasting media re-plenisher unit 150 l
  • electrical control unit incl. PLC
  • wet-type filter unit: RF 800 NS: 8.000 m³/h special design for reduction of the rest dust content to less than 10 mg/m³

Demonstration machine with electrical control unit.

  • year of manufacture: 2019
  • blasting chamber made of solid, robust welded construction in 10 mm steel
  • multiple-segment drum made of high wear resistant 10 mm austenitic manganese steel
  • max. batch volume: 700 dm³
  • max. batch capacity: 1.800 kg
  • 1 Rösler „Gamma 400 8G“ turbine (subject to change)

Demonstration machine with electrical control unit.

  • year of manufacture: 2017
  • back wall made of high wear resistant 15 mm austenitic manganese steel
  • multiple-segment drum made of high wear resistant 15 mm austenitic manganese steel
  • max. batch volume: 1.000 dm³
  • max. batch capacity: 3.000 kg
  • 1 Rösler „Rutten Gamma 520“ turbine (subject to change)
  • coloration: RAL 7015 slate grey / RAL 3020 bright red
  • electrical control unit incl. PLC

Machine with reduced height (machine height: 6.000 mm).

New machine with brush-off/blow-off unit, electrical control unit and filter unit.

  • max. work piece width: 40 inches (1.000 mm)
  • max. work piece height: 20 inches (500 mm)
  • turbines: 4 pc. "Hurricane H32" (11 kW/each)
  • transport speed: 2.5 to 20 ft./min (0.8 to 6 m/min)
  • infeed and outfeed conveyor (2 m/each)
  • filter unit

New machine with brush-off/blow-off unit and electrical control unit.

  • year of manufacture: 2019
  • operating hours: 14
  • max. work piece width: 59 inches (1.500 mm)
  • max. work piece height: 20 inches (500 mm)
  • turbines: 4 pc. "Gamma 400 G" (11 kW/each)
  • transport speed: 2.5 to 20 ft./min (0.8 to 6 m/min)
  • electrical control unit incl. PLC



Used machine

  • year of manufacture: 2010
  • 2x roller conveyor (infeed)
  • blow off unit
  • pre-heater
  • filter unit RF 100/12 Ps-HP
  • central electric station incl. PLC
  • painting cabin with central electric station
  • painting system
  • paint drier
  • slat conveyor
  • 2x roller conveyor (outfeed)
  • reburning

Used machine with electrical control unit

  • year of manufacture: 2016
  • operating hours: 35
  • electrical control unit
  • with pneumatic transport
  • special coloration: RAL 9002 (grey white)

Used machine with belt conveyor, electrical control unit and filter unit.

  • year of manufacture: 2018
  • operating hours: approx. 6.966
  • 4 blasting pistols SPI 38
  • lateral openings side walls with tunnel gates
  • belt conveyor (useful width: 300 mm / length: 4.500 mm)
  • electrical control unit incl. PLC
  • filter unit RF 10/1 Ps: 1.000 m³/h

Used machine with control unit and filter unit

  • year of manufacture: 2013

Used machine with electrical control unit and filter unit

  • year of manufacture: 2013
  • operating hours: approx. 16
  • electrical control unit incl. PLC
  • filter unit RF 10 P/s: 600 m³/h

Used machine with electrical control unit and filter unit wet-type.

  • year of manufacture: 2017
  • operating hours: approx. 6.634
  • turbines: 2 pc. Rösler "Gamma 300 G" (11 kW/each)
  • electrical control unit incl. PLC
  • wet-type filter unit RF 350 NS: 3.500 m³/h

Used machine with electrical control unit, skip loader unit, vibratory channel unload conveyor and filter unit.

  •  year of manufacture:: 2013
  • operating hours: approx. 162
  • 8 blasting pistols SPI 38 in boron carbide
  • skip loader unit
  • vibratory channel unload conveyor for unload of the treated work pieces
  • electrical control unit incl. PLC
  • filter unit RF 30/3 P/s: 3.000 m³/h

Used machine with electrical control unit.

  • year of manufacture: 2011
  • operating hours: approx. 15.380
  • electrical control unit incl. PLC

Skip loader unit new and unused.

  • year of manufacture: 2011
  • paint of frame: RAL 7015 (slate grey)
  • paint of loading: RAL 3020 (bright red)
  • work piece load capacity: max. 400 kg
