R6/1000 SF Drag Finishing System & Medical Implants

, A.Altmann - Back to overview

Rösler is continuously searching for ways to improve the finishing technologies utilized within the medical industry. One of the most valuable solutions offered is the R 6/1000 SF Drag Finishing System which provides perfect mass finishing to orthopedic implants with its exact drag finishing technique.

How it Works

Drag finishing technology is ideal for treating high-value, delicate work pieces with complex shapes, for example, endoprosthetic components. Individually attached to special work piece holders, the work pieces are mounted to rotary workstations/spindles and “dragged” through a stationary processing bowl filled with grinding or polishing media. This allows a highly precise, targeted finishing operation. Compared to conventional vibratory systems, drag finishers produce up to 40 times higher processing intensity.

Machine Specifications

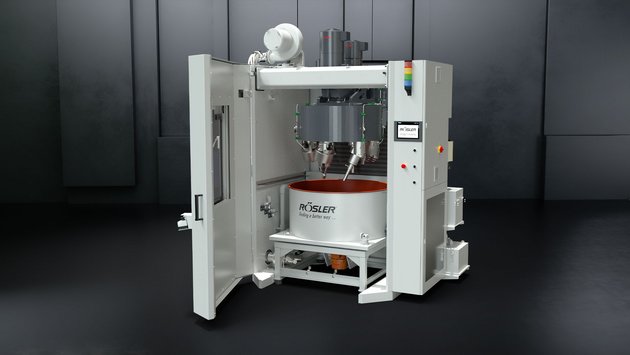

R6/1000 SF Drag Finishing System

The R 6/1000 SF is ideal for high-quality, delicate, and complex work pieces. It can also handle large and heavy components. Each machine is equipped with four multi-purpose work stations, allowing for batch processing in a single work bowl with a diameter of 43 in (1080 mm). The machine’s overall size is 7.5 ft long, 7.9 ft wide, and 11.5 ft high (2.3 x 2.4 x 3.5 m).
Intelligent process controls enable the R 6/1000 SF to produce consistent results from batch to batch as well as automation and integration into production cells. The system can also be configured to combine processing steps, such as pre-grinding, fine grinding, and polishing.

Process-Steps for Implants

Knee joints - Process steps
1 / 4

Manufacturing-Step

First, work pieces are delivered from the previous manufacturing step (no.1 - usually a CNC grinding process) in need of a defined surface roughness. A finish that is too rough will require extensive processing in subsequent steps if it is even recoverable.

Knee joints - Process steps
2 / 4

Process-Step One

In this initial step (no.2), the work piece surface is cut down using ceramic media. This media is specially formulated to remove the grinding lines from the CNC process and leaves a very smooth finish on the parts. Since the geometry of the implant cannot be altered, even metal removal on all areas of the part is important.

Knee joints - Process steps
3 / 4

Process-Step Two

Next, the parts are transferred to the second processing step (no.3) where plastic media is used to smooth the parts further. This step achieves a pre-polish finish with very low Ra values, but not the high luster shine. Both the first two processes are wet processes and use the same liquid compound. The compound and water mixture flushes out metal and media fines

Knee joints - Process steps
4 / 4

Process-Step Three

The third process is a dry polishing process (no.4) using treated corn cob or nut shells that have been saturated with a special polishing compound. A stable and repeatable polishing process is achieved by periodically replacing a defined volume of polishing media with fresh material. In addition to selecting the correct media composition, shape, and size, a number of processing parameters need to be defined to achieve the desired finish. These parameters include processing depth, spindle speeds, water flow rates, compound concentration, etc., and are critical to achieving the perfect finish on the implants. This requires trial and error as well as expertise from finishing experts.

Smith+Nephew relies on Rösler equipment

R6/1000 SF Drag Finishing System

The R6/1000 SF drag finishing system is used worldwide in medical technology - for example at Smith+Nephew, one of the 20 companies with the highest turnover in the industry with around 18,000 employees in over 100 countries. In its new, high-tech plant in Penang, Malaysia, S+N relies on two production cells, each with three R 6/1000 SF drag finishers from Rösler, to process knee implants made of cobalt-chrome alloy.

The drag finishers consist of a processing bowl with a diameter of 1,000 mm and a carousel with six rotary spindles. These are equipped with specially designed work piece fixtures, to which the femur components are mounted. The design of the fixtures allows clamping of the work pieces in a position that allows the finishing of precisely defined surface areas. Thanks to an optimised workpiece holder, 18 parts can be machined at the same time - resulting in around 50 percent higher productivity. The systems are operated with media classification systems. They work in combination with two fully automatic Z 1000 centrifuges for process water treatment and the Rösler Smart Solutions digitalisation software. This innovative monitoring solution enables the monitoring, recording and evaluation of up to 14 individually selectable process parameters and provides recommendations for action if these values deviate from the target. RSS also facilitates the seamless recording of process data and is helpful as proof of process quality and stability in quality audits and for documentation purposes.
